Utah's high-desert climate doesn't make this easier. Cold winters, hot dry summers, and wide day-night temperature swings put real stress on wall assemblies. This guide breaks down the top insulation materials, how to match them to your wall type and climate zone, and how to land on the right option for your home.
Key Takeaways
- Blown-in fiberglass (drill-and-fill) is Greenify's most requested insulation service and the top choice for existing sealed walls
- Fiberglass batts cost the least but lag on moisture and fire performance compared to blown-in options
- Mineral wool (Rockwool) leads on fire resistance and vapor-open moisture management
- Your stud size (2x4 vs 2x6) and Utah's climate zone set your target R-value
- A home energy audit confirms which material actually fits your wall assembly and budget
Overview of Exterior Wall Insulation
Exterior wall insulation fills the cavities and surfaces of your home's outer walls, distinct from attic or crawlspace insulation, which handles heat rising and ground contact separately. Wall assemblies deal with constant temperature swings, wind-driven moisture, and structural framing all at once, so material choice carries more weight here than in simpler applications.

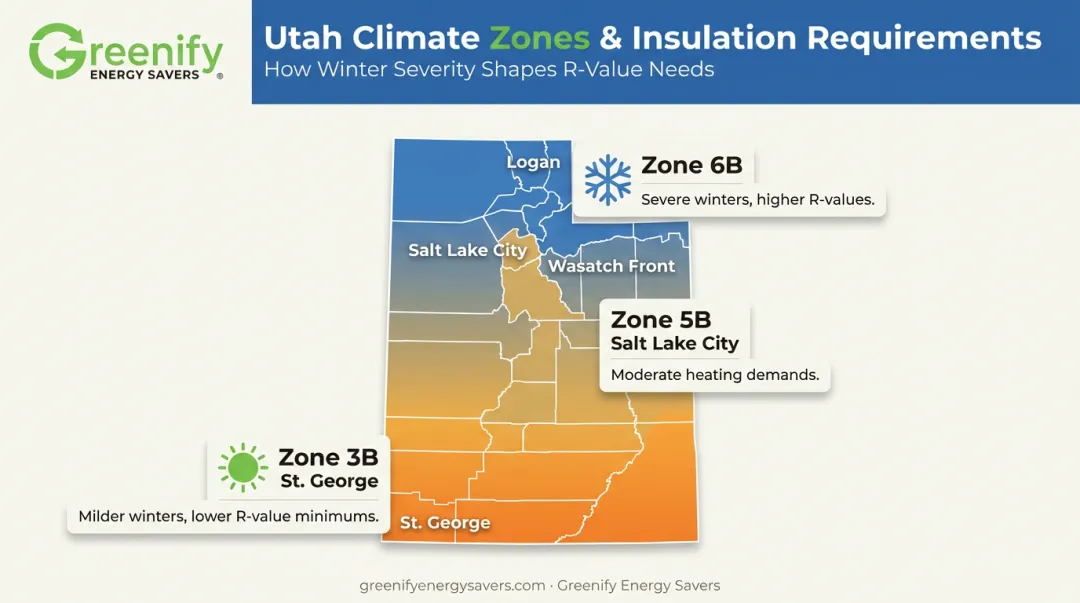

Utah's climate adds another layer of complexity: the state spans three climate zones, each carrying its own minimum insulation requirements under the current energy code:
- Zone 3B (St. George): milder winters, lower R-value minimums
- Zone 5B (Salt Lake City, Wasatch Front): moderate heating demands
- Zone 6B (Logan, Park City): severe winters, higher R-values
Utah's residential energy code, based on the 2021 IECC with state amendments effective July 2024, sets these minimums by zone rather than a single statewide rule.
Below, we break down the materials homeowners and contractors actually use on exterior walls today.

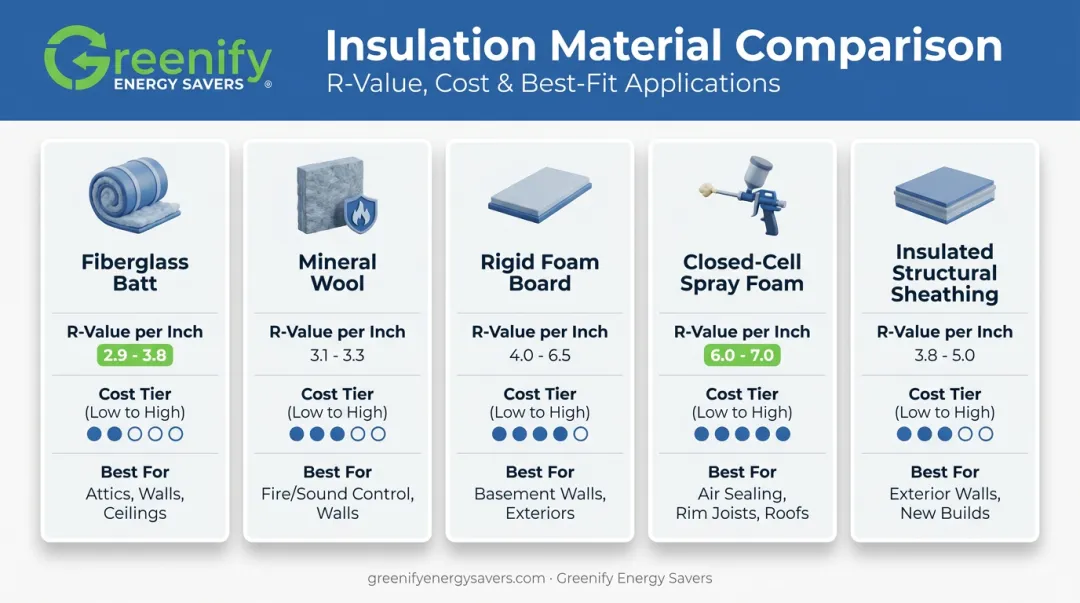

Top Materials for Exterior Wall Insulation
We compared each material on four criteria: R-value per inch, moisture and fire performance, installed cost, and ease of installation.
Fiberglass Batt Insulation
Fiberglass batts are spun glass fiber rolled into pre-cut sections sized for standard stud cavities. They remain the most widely used wall insulation in the country simply because they're familiar, affordable, and easy to install without special equipment.
Homeowners default to batts for good reason: low upfront cost, wide availability at any hardware store, and DIY-friendly installation in open cavities. The trade-off is performance: batts depend heavily on a snug, gap-free fit to hit their rated R-value.
| Metric | Detail |
|---|---|
| R-Value Per Inch | Roughly R-3.7 to R-4.3/in.; common products include R-13 and R-15 at 3.5 inches for 2x4 walls, R-21 at 5.5 inches for 2x6 walls |
| Cost | Lowest upfront material cost of the common options; installed pricing varies by region and cavity accessibility |
| Best For | Budget-conscious projects and standard stud-cavity walls in new construction or retrofits |
Mineral Wool (Rockwool) Insulation
Mineral wool is spun from basalt rock or slag fiber, pressed into dense batts. It's built a reputation as the fire-resistant, moisture-tolerant option contractors reach for when durability matters more than shaving a few dollars off material cost.
What sets it apart:
- Non-combustible, classified under ASTM E136 with zero flame spread and zero smoke development
- Vapor-permeable, allowing walls to dry outward rather than trap moisture
- Naturally sound-dampening and resistant to pests
| Metric | Detail |
|---|---|
| R-Value Per Inch | Approximately R-4.2/in. (Rockwool Comfortbatt: R-15 at 3.5 in., R-23 at 5.5 in.) |
| Moisture/Fire Performance | Roughly 30 perms under ASTM E96, naturally fire-resistant and vapor-open |
| Best For | Fire-zone homes, humid or variable climates, and retrofit projects needing added durability |
Blown-In Fiberglass Insulation (Drill-and-Fill) — Greenify's Most Requested Service
Blown-in fiberglass is Greenify's most requested insulation service, and for good reason: it is the most practical and cost-effective solution for Utah homeowners with existing sealed exterior walls. Using the drill-and-fill method, installers bore small holes in the siding or interior drywall, blow fiberglass loosely into the stud cavities under controlled pressure, then patch the holes — no major demolition, no siding removal, minimal disruption to the home's finished surfaces.
The material itself delivers strong all-around performance:
- Non-combustible — fiberglass does not burn, meeting fire safety requirements without additional treatment
- Moisture-resistant — fiberglass does not absorb water and will not rot, mold, or lose R-value when exposed to normal humidity levels
- Settles less than cellulose — blown fiberglass maintains its installed density and R-value over time better than cellulose, which can settle and leave gaps at the top of the cavity
- Cost-effective — material and labor costs are lower than spray foam, while delivering meaningfully better coverage than open-cavity batt installation in sealed walls
| Metric | Detail |
|---|---|
| R-Value Per Inch | Approximately R-3.7 to R-4.2/in.; a fully packed 3.5-inch 2x4 cavity reaches roughly R-13 to R-15 |
| Installation Method | Drill-and-fill: small holes bored, fiberglass blown in under pressure, holes patched — no siding removal required |
| Best For | Existing sealed exterior walls, whole-house retrofits, and any project where minimizing disruption is a priority |
For most Utah homeowners with sealed walls, this is the starting point Greenify recommends before any other option.
Rigid Foam Board (XPS, EPS, Polyiso)
Rigid foam board is a continuous exterior insulation option — lightweight plastic panels installed over sheathing to reduce thermal bridging. It is less commonly used for existing homes. Most walls in older Utah homes are already sealed, which means accessing the cavity for rigid foam installation would require removing siding. For those situations, blown-in fiberglass installed via the drill-and-fill method achieves excellent results without that level of disruption. Rigid foam is generally a consideration for new construction or full re-siding projects where the wall assembly is already open.
Closed-Cell Spray Foam Insulation
Closed-cell spray foam is liquid-applied and expands on contact, hardening into a rigid, air-sealed layer. Industry-wide, it is the only material on this list that doubles as insulation and air barrier in a single application.
It wins on raw performance per inch, and the foam self-seals gaps as it expands while resisting moisture intrusion. The catch is that it requires professional equipment and training: this isn't a weekend DIY project. Greenify Energy Savers uses closed-cell spray foam to seal small penetrations. For wall cavities we recommend blown-in fiberglass and other bulk insulation, since specialized spray foam equipment is best suited to targeted jobs rather than large wall areas.
| Metric | Detail |
|---|---|
| R-Value Per Inch | Roughly R-5.8 to R-6.9/in., depending on product and application |
| Installation | Requires certified professional application; not a typical DIY option |
| Best For (industry) | Maximum air-sealing and thermal performance where budget allows full foam installs |
| Greenify scope | Spray foam to seal small penetrations; bulk insulation for larger cavities |
Insulated Structural Sheathing Panels
These panels combine OSB or plywood with a factory-bonded rigid foam layer, and some include an integrated weather barrier. The idea is to replace three separate wall layers (structure, insulation, and moisture protection) with one product.
For builders, that means less time juggling materials on-site. For homeowners, it means fewer seams and potential gaps in the finished assembly, provided the crew handles joint sealing correctly.
| Metric | Detail |
|---|---|
| R-Value | Varies by core and thickness; ZIP System R-Sheathing ranges R-3 to R-12 depending on polyiso thickness |
| Install Complexity | Lower field labor overall, but requires trained crews for proper joint sealing and fastening |
| Best For | New construction or full siding replacement projects prioritizing speed and an all-in-one assembly |
How to Choose the Right Insulation for Your Exterior Walls
R-value alone shouldn't drive this decision. The material also needs to fit your wall assembly, your climate, and how moisture moves through your home.
R-value and stud size: Utah's amended energy code sets specific targets by climate zone, not a generic "R-13 for 2x4, R-19 for 2x6" rule. Your county determines which zone applies:
- Zone 5: R-20 cavity insulation, or R-13 cavity plus R-5 continuous insulation
- Zone 6: R-20 plus R-5 continuous, or R-13 plus R-10 continuous
Utah's climate swings: Cold winters paired with hot, dry summers favor materials with strong thermal stability across a wide temperature range. This is where vapor-open options like mineral wool, or continuous foam layers that reduce thermal bridging, tend to outperform basic batts installed alone.
Vapor barrier placement: In Utah's Zone 5 and 6 climates, the International Residential Code generally requires vapor retarders on the interior (warm) side of frame walls. Placing one on the wrong side, or stacking a low-perm foam outside with polyethylene inside, can trap moisture and cause rot instead of preventing it.
Match the approach to your project type:
- New construction or full re-siding: Insulated sheathing panels or rigid foam work as continuous exterior layers in these open-assembly situations, though this is less common in existing homes
- Open-cavity retrofits: Batts or other bulk insulation make more sense once walls are opened up
- Closed walls, no siding removal: Dense-pack blown-in fiberglass can be installed through small drilled holes, though results improve when siding comes off
A professional home energy assessment is the fastest way to sort through these variables. Greenify Energy Savers offers home energy audits that identify existing insulation gaps in Utah homes before you commit to a material or R-value combination.
How We Chose the Best Materials
We compared each material against four criteria: R-value per inch, moisture and fire performance, installation complexity, and cost-effectiveness relative to what it delivers.

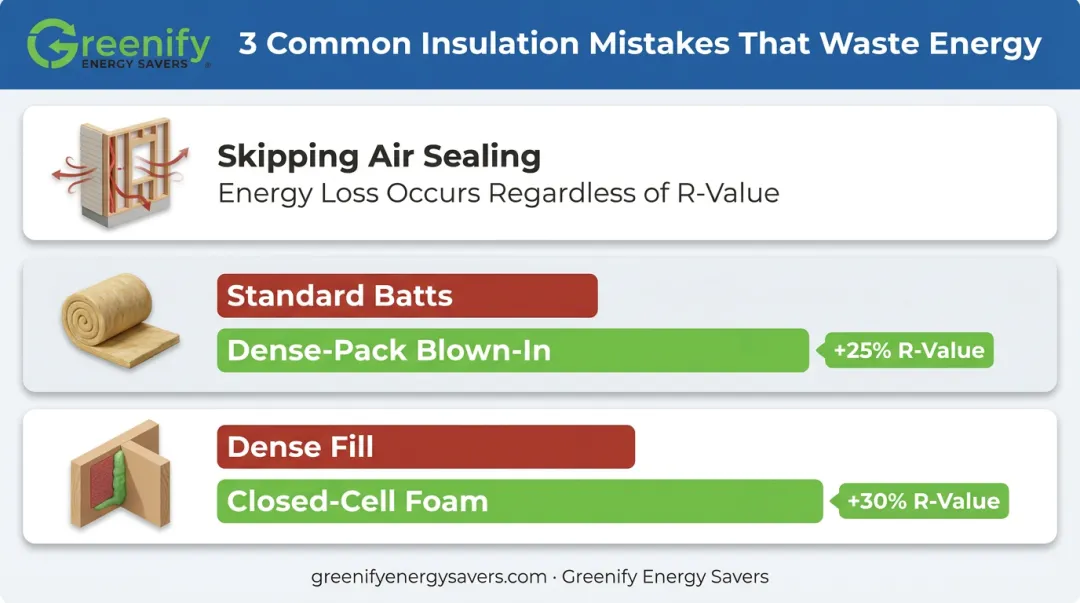

The most common mistake we see homeowners make is picking insulation based on R-value alone, without factoring in air sealing or wall assembly fit. A few specific patterns show up repeatedly:
- Skipping air sealing first, even though it should happen before or alongside insulation upgrades — conditioned air still escapes through cracks and gaps no matter how high the R-value is.
- Defaulting to standard batts when dense-packed blown-in fiberglass would perform better in the same cavity, offering roughly 25% greater R-value.
- Defaulting to spray foam for large wall areas when Greenify's foam work focuses on small areas such as small penetrations - larger cavities are better served by blown-in fiberglass and dedicated air sealing.
Conclusion
No single material is "best" for every home. The right choice depends on your wall type, your local climate zone, and your budget for materials versus labor.
Weigh long-term energy savings and durability, not just the sticker price of the material itself. A cheaper batt job that leaves gaps can cost more in wasted energy than a properly installed mineral wool or foam assembly.
If you're not sure where your walls stand today, schedule a home energy assessment with Greenify Energy Savers. Our team can help Utah homeowners pinpoint the ideal exterior wall insulation solution for their specific home.
Frequently Asked Questions
What is the best insulation to use on exterior walls?
For most existing Utah homes with sealed exterior walls, blown-in fiberglass installed via the drill-and-fill method is the top recommendation — and it is Greenify's most requested insulation service. It delivers strong R-value (approximately R-3.7 to R-4.2 per inch), resists moisture without absorbing it, is non-combustible, and settles less over time than cellulose. Mineral wool batts are a strong alternative when walls are open and fire resistance is a priority. Rigid foam board is a viable option in new construction or full re-siding projects, but is rarely practical for sealed existing walls. The best choice ultimately depends on your wall assembly, project type, and local climate.
What R rating is best for exterior walls?
Utah's amended code calls for R-20 cavity insulation or R-13 cavity plus R-5 continuous insulation in Zone 5, with higher continuous R-values required in Zone 6. Continuous exterior insulation adds further R-value on top of cavity insulation.
Can you insulate exterior walls without removing the siding?
Dense-pack blown-in fiberglass can be installed through small drilled holes without removing siding. Removing siding still allows for better continuous insulation results and easier air sealing.
Do exterior walls need a vapor barrier?
Vapor barrier need depends on climate zone and wall assembly. In Utah's cold-climate zones, code typically requires placement on the interior (warm) side of the wall.
Is spray foam or fiberglass better for exterior walls?
Industry-wide, spray foam offers superior air-sealing and higher R-value per inch, while fiberglass costs less and installs more easily for large wall areas. At Greenify Energy Savers, exterior walls are insulated with blown-in fiberglass and similar bulk materials; spray foam is used to seal small penetrations.
How much does it cost to insulate exterior walls?
Costs vary widely by material, wall condition, and whether siding removal is involved. A professional assessment from Greenify Energy Savers gives you an accurate, project-specific estimate.
